SHAPEMASTER SOFTWARE

Aluminium composite material (ACM) panel design and manufacturing software

Would you like a Personalised Demonstration?

Request Your Personalised Demo
ACM Cladding Software Sample

Easily Create New Designs

With ShapeMaster Software, you can create your own ACM panel shapes in a very simple-to-use interface.

Quickly create panel designs that you can control parametrically. And then save to your design to your library for later use or as a template for a new design.

This option is available in ShapeMaster Software.

Detailed Job Reports

Standard reports for production and purchasing are included in ShapeMaster Software.

Everything from a Job List report with each part’s dimensions and images, to a cut list of all required “Angle Brackets” per job.

These reports can also include pricing for quotations, and are easy to access and generate.

This option is available in ShapeMaster Software.

ShapeMaster Report

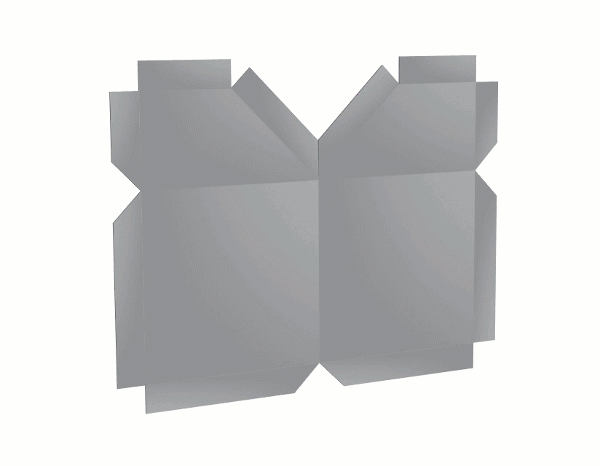

ShapeMaster Fold Visualisation

Fold in 3D for Visualisation

ShapeMaster Software allows you to create your ACM panel designs and then fold them up in a 3D rendered view.

This rendered view is key to being able to visually see any folding issues prior to manufacturing.

Don’t try to imagine how your finished product will work – see it fold with ShapeMaster Software.

This option is available in ShapeMaster Software.

Integrated Nesting

ShapeMaster Software can be integrated with EzyNest / EnRoute.

This pairing allows you to process and nest parts for manufacturing with one click.

With integrated nesting, you can also select your required sheet size and tooling setup prior to processing.

This option requires EzyNest or EnRoute for integration.

ShapeMaster Nesting

ShapeMaster Demo Video

So how does the software work?

Well, here’s a demonstration video showcasing how easy it is to design and manufacture ACM panels with ShapeMaster Software.

Ask yourself – how ShapeMaster Software maximize production for your business?

Want more info on ShapeMaster Software?

Request more info

ShapeMaster Software

  • Simple to use, easy to learn

  • Extensive library of shapes

  • Scale shapes parametrically

  • Save shapes for later re-use

  • Control length, witdth and angle of tabs

  • View shapes as a 3D render

  • Detailed job reporting

  • Generate layered DXF files per shape

  • Machine view – integrated nesting

  • Part labelling

  • Link to any CNC machine

US$149monthly
  • Cancel anytime!
  • Creates a DXF file per part
  • Includes 4 hours training
  • One-off Setup fee US$400

ShapeMaster + EzyNest

  • Simple to use, easy to learn

  • Extensive library of shapes

  • Scale shapes parametrically

  • Save shapes for later re-use

  • Control length, witdth and angle of tabs

  • View shapes as a 3D render

  • Detailed job reporting

  • Generate layered DXF files per shape

  • Machine view – integrated nesting

  • Part labelling

  • Link to any CNC machine

US$199monthly
  • Cancel anytime!
  • Creates a DXF file per part
  • Includes 4 hours + CNC link
  • One-off Setup fee US$995
Sign Up Now
Engineering Products Brochure 2020 FrontCover

Would you like a brochure?

Please fill in the form below to receive an instant email with our latest product brochure.

    First Name:

    Last Name:

    State/Province

    Company:

    Email:

    Country

    System Requirements

    Minimum Specifications

    • i5 Processor
    • Windows 10 Operating System
    • 8 Gig Of Ram
    • 5 Gb Free Hard Disk Space
    • Full Open GL Support Video Card

    Recommended Specifications

    • i7 Processor
    • Windows 10 Operating System
    • 16 Gig Of Ram Or More
    • 1 Tb Free Hard Disk Space
    • nVidia or AMD Video Card

    Note: We use nVidia Cards with our testing.
